Sports Video Camera Pole System 30sf 9M With Manual Pantilt Endzone
product introduction:
YG series endzone camera system that is designed for athletic
programs of all sizes. This system is easy to transport, quick to
set-up, and of all the endzone video systems on the market, our 30'
-9meter mast system is the only manufactured in China, with low
price and good quality
YG series endzone camera
| Mast material | Aluminum tube |
| Height extend | 9m /30ft |
| Transport length | 1.8m |
| Weight | 15kg –35 pound |
| Pantilt | Manual |
| Stand | 4 legs tripod –2 section, adjustable for uneven land |
| Pole rising | Manual |
| Ease to setup | Easy |
| Ease to use | Easy |
| Customized Color | Available |
| Complete system | Yes |
| HDMI cable | 8m |
| Monitor | LCD 10inch with attached battery |
| Rain gear | Yes |
| Travel bag | Yes |
| Level | Yes |
| Wheels | Yes |

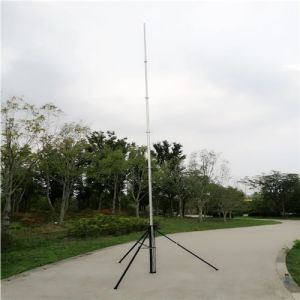

product photo:
features:
§ Both electrical pantilt Camera Controls and manual camera control
E-remore pan tilt may not suitable to rush movements, our manual
control pan tilt, suitable to any kind of requests.
§ 30 ft. Extended Height
§ Whole life hardware Warranty
§ Easy Set-up and Operation
§ Everything Included (no camera)
§ 10" Monitor
§ Choice of Tower Color
§ Anti 80 miles wind (ground nut and guyed wire in rush climate)
- Advantages:
- 1. The Telescopic Camera mast has a minimum height of 170cm and the
maximum height can be up to 18m.
- 2. Has tripod support and trolley base, easy to move and transport
- 3. mast has two types for selection, pneumatic cyliner and hand
pull-up
- 4. top mounted quick release camara plate
- 5. operate plate to control the camera
- 6. LCD monitor screen and extension cable
- 7. Transproting bag
- 8.one 12V-10Ah battaery is equiped with a converter to 7.2V, can
supply to drive motors and Camera/DV screen
- 9. Rain covers
- 10. water level
- specification:
| 9m high aluminium telescopic push-up mast |
| fully extracted length (height) | 9m |
| transportation length | 1.8m |
| weight | 15kg |
| bottom diameter | 60mm |
| top diameter | 40mm |
| wall thickness | 2mm |
| number of section | 5 |
| mast material | high quality anodized aluminium
strong interlock clamps made from stainless steel |
| Tripod | 4 legs |
pantilt control type:
1. remore control, electrial motor drive
2. manual control
turn the mast body around like Submarines periscope,
turn the camera up and down with a string and gears.
| Pan tilt | Screen | HDMI wire |
Electrical Include: Pantilt head Remoter battery
|
|
8 meter
|
Hand control includ Pantilt Drive string Gears Handle
| All screen have attached battery | If camera has wifi, so no need this wire |
our telescopic mast available:
push up
| extended height (m) | No. Of section | Retracted height(m) | Outer tube range(mm) | Self weight (kg) | Max.payload (kg) |
| 3 | 2 | 1.55 | 50-55 | 3 | 20 |
| 4 | 3 | 1.35 | 50-60 | 4 | 20 |
| 5 | 3 | 1.7 | 50-60 | 5 | 20 |
| 6 | 4 | 1.55 | 45-60 | 6.5 | 15 |
| 7 | 4 | 1.8 | 45-60 | 7 | 15 |
| 8 | 5 | 1.65 | 45-65 | 9 | 12 |
| 9 | 5 | 1.85 | 45-65 | 10 | 12 |
| 10 | 6 | 1.7 | 40-65 | 12 | 10 |
| 12 | 7 | 1.75 | 35-65 | 28 | 8 |
| 15 | 8 | 1.9 | 30-65 | | 6 |
Features - 3 to 15m full extended models
- Car suitable transport length
- Hand push up
- Max 80mm Diameter Bottom Section -
- 25mm Diameter Top Section
- Aluminum 6063 tube 2mm thickness
- Stainless steel clamp fast fasten, without tool
- COMMERCIAL QUALITY
|
| |
Usually these masts require a flat or socket wrench, with the quick
release clamps you can raise and lower the masts without any tools.
