Portable 30ft 9M Winch Up 6 Sections Lattice Steel Towers

• advantages:
• Lightweight Aircraft Grade Aluminum or steel Construction
• Rapid Deployment
• Corrosion Resistant
• Ideal for Temporary or Permanent Installations
• Easy Tilt-Up
• Adjustable Height Winch
• High-Ratio Winch
• High Strength-to-Weight Ratio
• Low Maintenance

product Introduction:

A lattice tower or truss tower is a free standing vertical framework tower.This construction is widely used in transmission towers carrying high voltage electric power lines, in radio masts and towers and in observation towers. Its advantage is good shear strength at a much lower weight than a tower of solid construction would have as well as lower wind resistance.

In structural engineering the term lattice tower is used for a freestanding structure, while a lattice mast is a guyed mast supported by guy lines.

specification:

Single section length: 1000 to 3000mm

Heavy duty single sector length can be max 6000mm

How to order:

Sample: if you are looking for a 30ft tower you can choose:

1. You can choose 3 sectors, 4 sectors, 5 sectors,6 sectors ….
2. If you choose 5 sectors, then need to confirm- from sector 1,2,3,4,5 or 2,3,4,5,6 or 6,7,8,9,10, any 5 sectors in serial

Also can contact us for proposal, we will afford professional guidance in accordance with your load & height & use circumstance situations.

Both hand winch and electrical winch available.

special strenthen tower available

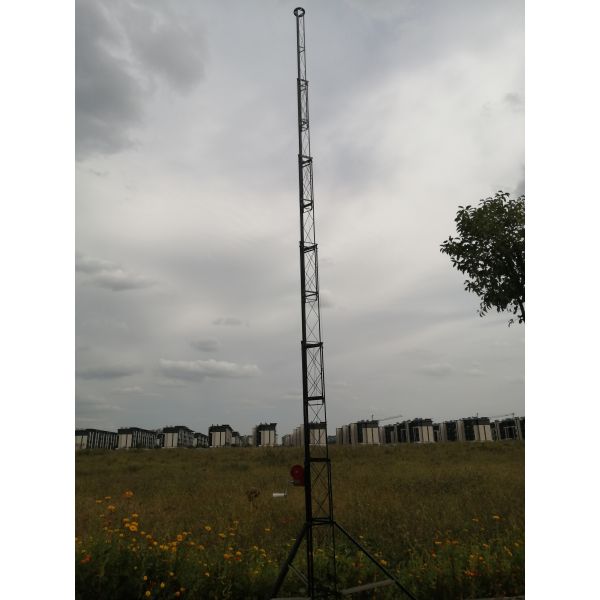

product photo:

features:
YG's aluminum /steel lattice towers are manufactured and new designed from China, in max 3 meters sections allowing effortless transport, meaning total leadtime can be measured in days - not weeks or months.

As a lightweight structure the towers can be built with a small crew and minimal plant, with smaller towers even able to be assembled by hand.
Able to be set up within 10m with only two people,

Application areas:
Capable of mounting a range of lighting, CCTV, sensors, and industrial monitoring equipment, this serviceable mast is incredibly popular in mining and construction where climbing structures can present a safety concern, eliminating the need for an elevated work platform or a certified tower rescue team to perform even simple adjustments. This mast is also ideal for combination with wind turbines, providing high elevation with maximum stability allowing the establishment of temporary power generation at your exploration site, construction office, or hardstand.
Headframes are available to support a range of wind turbines, radars, camera systems, and telecommunications configurations

Accessories:

1. Hand winch- screw type- can stop and lock at any position
2. Wheels—pneumatic tire (optional)
3. Tripod stand (optional)
4. Guyed wire—stainless steel wire from 3mm to 8mm

Packing, delivery tiem, and shipping:

We will close then pack the goods safely in solid wooden box.

Prodcution lead time for sample: 2 weeks; 4 weeks for bulk order

Ship by sea, air, or express according to your request.

Establised at the year of 2008, from begnning, we only produce hand push antenna masts, later on we developed hand winch type mast, and hand winch lattice tower, we focus on the manufacturing light weight, easy to operation mast and towers. They are ideal product to replace the pneumatic tower.

Our products mostly used for home antenna, home decoration lighting, CCTV monitoring, WIFI, and temperoray telecom.

Sometime, clients are looking for tower or mast just for a simple use, but on the market there are always heavey and expensive products, our aim is to fill the gap of small & compact and light weight item for selection.
